[KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors

  • [KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors
起源の場所 上海
ブランド名 KSTONE
証明 ISO9001
モデル番号 KS30-CS
価格 $12000-$25000
パッケージの詳細 カートン /木製の箱
受渡し時間 10営業日
支払条件 T/T
供給の能力 100セット/年

無料サンプルとクーポンについては、ご連絡ください。

ワッツアップ:0086 18588475571

ウェイチャット: 0086 18588475571

スカイプ: sales10@aixton.com

24時間オンラインでサポートします

x
商品の詳細
純度測定範囲： 0%100% 測定精度 ±0.5℃
解決 0.01％ デューポイント範囲 -80℃ - +20℃
湿気の範囲 0.05—23100μl/l 測定応答時間（+20℃） -60℃→20℃5S [30S]; 20℃→-60℃10S[300S]
再現性 ±0.2°C
ハイライト

Adiabatic Design SF6 Gas Tester

,

Constant-Temperature SF6 Gas Tester

,

Chemical Sectors SF6 Gas Tester
メッセージ
製品の説明

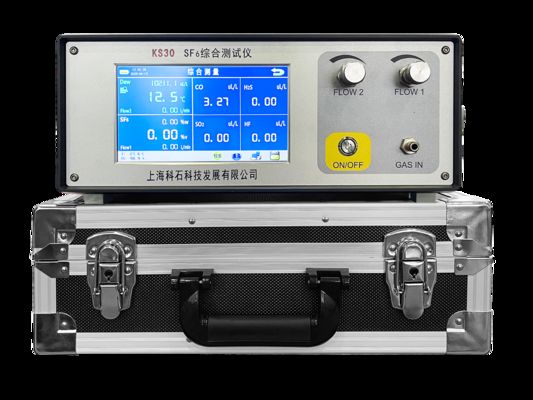

[KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors

The KS30-CS SF6 gas analyzer adopts a constant-temperature and adiabatic design, which can reduce the impact of sample gas temperature and ambient humidity, and improve measurement accuracy. It is mainly used to measure the SF6 gas purity (volume/mass percentage) of mixed gases including SF6 & air and SF6 & N2. By the same token, products of this series can also be used for purity measurement of other types of gases, such as H2 & N2 mixtures. This equipment is also equipped with a dew point testing function (for the purity measurement of other gas types, the type of mixed gas must be specified before purchase).

The SF6 gas analyzer can be widely used in fields such as electric power, chemical industry, metallurgy, iron and steel, and gas industry, for analyzing gas purity and conducting dew point tests.

Functional Features

  1. Long-life detection module
  2. High accuracy and good repeatability
  3. Built-in pressure maintaining valve and electronic flowmeter
  4. Measurement results not affected by ambient temperature
  5. Fast measurement response speed
  6. Color touch screen control and graphical interface for easier operation



Parameter Category Specific Parameters
Purity Measurement range: 0～100%

Measurement accuracy: ±0.5% (±0.2% within a certain range)

Resolution: 0.01%
Dew Point Dew point range: -80℃ — +20℃

Measurement accuracy: ±0.5℃

Moisture range: 0.05—23100 μL/L

Measurement response time (+20℃): -60℃→20℃ 5S[30s]; 20℃→-60℃ 10S[300S]

Repeatability: ±0.2℃

Resolution: Dew point: 0.1℃; Moisture: 0.1ppm (100ppm～1000ppm), 0.01ppm(10ppm～100ppm)
Sample Gas Flow 0.2±30%L/min
Sample Gas Pressure ≤10bar
Response Time ≤30s
Environmental Conditions Temperature: -20℃～+50℃; Humidity: 5～95%RH
Working Power Supply Lithium battery power supply, 100～240AC, 50/60HZ, AC/DC dual-use
Dimensions 414333177mm
Weight 3Kg
