| 測定範囲: | 0.01ppm -10000ppm | 正確さ: | 0.01ppm |
|---|---|---|---|
| Min. Resolution: | 0.01ppm | 検出器のガスおよび電気統合ホース: | 標準の長さは3メートルです（必要に応じてカスタマイズでき、最大10メートル） |
| 電源入力ケーブル: | 2メートル | 入力電力: | 220V±22V 50Hz±2Hz（外部リチウムバッテリーインバーター電源が利用可能） |
| ハイライト: | 0.01ppm SF6 Leakage Detector,0.5s SF6 Leakage Detector |
||

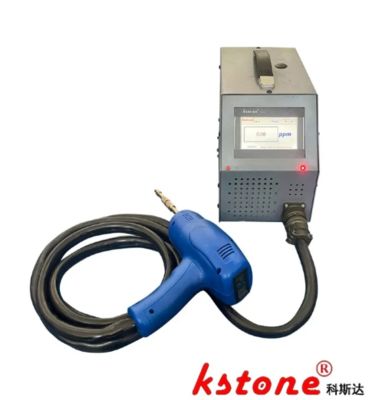

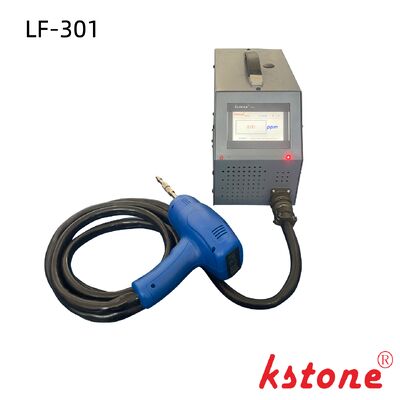

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]
Overview
It adopts the principle of low-voltage ionization in a high-frequency magnetic field. The product has no radiation source, which is safe and reliable. There are no vulnerable parts in the product, and the usage and maintenance cost is low. It is durable. An external lithium battery inverter power supply is required when needed.
Accurately quantify 0.01ppm.
Technical Parameters:
|
Measurement Range |
0.01ppm - 10000ppm(v) |
|
Measurement Accuracy |
0.01ppm(v) |
|
Minimum Resolution |
0.01ppm(v) |
|
Recovery Time from "Poisoning" |
≤10 seconds in an environment of 99.99% SF6 |
|
Response Time |
≤0.5 seconds for 10ppm |
|
Indication Method |
Direct display of ppm on the touch screen with a resolution of 0.01ppm; for example, 99.99ppm |
|
Gas and Electric Integrated Hose of the Detector |
Standard length is 3 meters (Can be customized as required, up to 10 meters) |
|
Power Input Cable |
2 meters |
|
Input Power |
220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available) |
|
Ambient Temperature |
5℃ - 45℃ |
|
Ambient Humidity |
≤85% |
|
Power |
≤100W |
|
Net Weight of the Whole Machine |
Detector: 1.2Kg |
|
External Dimensions of the Main Unit |
310×168×200mm |
|
Outer Packaging |
Aluminum alloy anti-collision box |
|
Gross Weight |
12Kg |
|
External Dimensions of the Aluminum Alloy Box |
370*320*270mm |
