[LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified

大画像 : [LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified

商品の詳細:

起源の場所:	上海
ブランド名:	KSTONE
証明:	ISO9000
モデル番号:	LF-03-FR

お支払配送条件:

最小注文数量:	5
価格:	$2000-$100000
パッケージの詳細:	カートン /木製の箱
受渡し時間:	7-10営業日
支払条件:	T/T
供給の能力:	年間1000

詳細製品概要

ハイライト:

GB/T11023-2018 SF6 Gas Leak Detector

NDIR Sensor SF6 Gas Leak Detector

[LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified

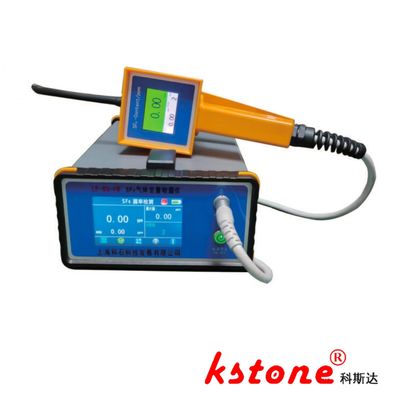

The LF-03-FR is a cutting-edge handheld tool designed to pinpoint SF6 leaks in high-voltage infrastructure such as GIS, circuit breakers, and switchgear. Equipped with imported NDIR infrared sensors and refined calibration tech, it detects leaks as tiny as 0.1ppm with ≤±2% F.S. accuracy, delivering results in under 1 seconds.

Standout Features:

✅ Budget-Friendly Alternative to Wika/Dilo – Top-tier performance at a competitive price

✅ Long-Lasting Power – 6+ hours of continuous use with rechargeable lithium batteries

✅ User-Friendly Design – Intuitive touchscreen (800×480 color LCD) + real-time audio-visual alerts

✅ Advanced Leak Tracking – Built-in hood algorithm computes leak rates for proactive upkeep

✅ Verified Quality – Complies with GB/T11023-2018 standards, validated by China’s national metrology institute

Ideal for utility teams, maintenance professionals, and industrial producers. Elevate your leak detection with speed and precision—secure yours now!

Technical Specifications	Details
Power Source	Rechargeable lithium battery or AC220V/50Hz
Detection Method	NDIR non-dispersive infrared (dual-beam)
Measurement Range	0-1000 PPM (customizable)
Accuracy	≤±2% F.S. (full-scale)
Sensitivity	0.1 ppm
Response Time	≤1 seconds
Warm-Up Time	≤3 minutes
Design	Handheld suction-type
Humidity Tolerance	≤90% RH
Display	Dual screens: 800×480 main LCD + 320×240 handle LCD
Controls	Resistive touchscreen
