Customizable Pressure Limit & Threads Spring-Loaded Safety Valve, 0.7 Mpa for Boilers & Pressure Vessels

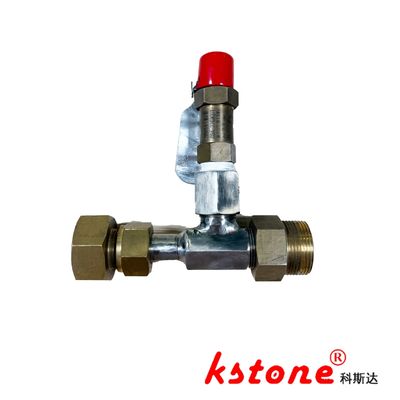

大画像 : Customizable Pressure Limit & Threads Spring-Loaded Safety Valve, 0.7 Mpa for Boilers & Pressure Vessels

商品の詳細:

起源の場所:	上海
ブランド名:	KSTONE
証明:	ISO9000
モデル番号:	スプリング式安全バルブ

お支払配送条件:

最小注文数量:	10
価格:	$1000
パッケージの詳細:	カートン /木製の箱
受渡し時間:	10営業日
支払条件:	、t/t
供給の能力:	1000

詳細製品概要

ハイライト:

Customizable Spring Loaded Safety Valve

Mpa Spring Loaded Safety Valve

Pressure Vessels Spring Loaded Safety Valve

Customizable Pressure Limit & Threads Spring-Loaded Safety Valve, 0.7 Mpa for Boilers & Pressure Vessels

Our spring-loaded safety valve stands out as an advanced automatic pressure relief device, engineered to maintain pressure balance via the interaction between medium pressure and spring tension. Widely integrated into equipment such as air compressors, it serves as a critical safeguard for diverse pressure-bearing systems across industrial settings.

Notably, this safety valve is specifically tailored for use in pressure-dependent equipment and systems, including boilers, pressure vessels, and pipelines. When internal pressure within the system surpasses the preconfigured safety threshold, the valve activates automatically to release the medium—effectively mitigating the risk of overpressure-related incidents and ensuring operational safety.

The key operational mechanism of our spring-loaded safety valve revolves around achieving automatic opening and closing through the equilibrium between system pressure and the spring’s preloaded force. Under normal operating conditions, the valve remains securely closed to maintain system integrity. As soon as pressure exceeds the set limit, the valve disc is pushed upward to relieve excess pressure. Once pressure returns to a safe range, the spring reverts to its original state, prompting the valve to close again. This dependable working cycle guarantees the safe and stable performance of your equipment, offering reassurance for all industrial application scenarios.

Parmeter	Description
Pressure Limit	Customizable according to user needs
End Threads	Customizable according to user needs
Set Pressure	0.7 Mpa

Customizable Pressure Limit & Threads Spring-Loaded Safety Valve, 0.7 Mpa for Boilers & Pressure Vessels 0
